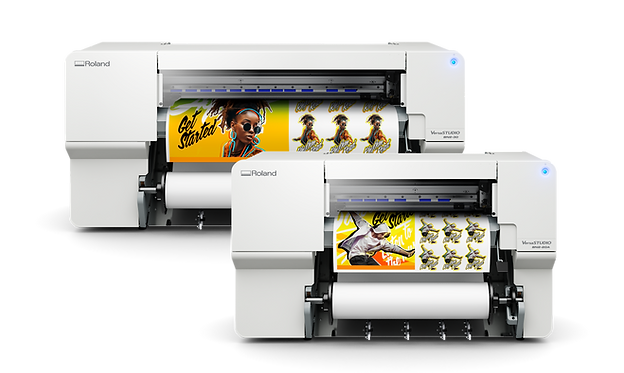

Roland VersaSTUDIO BN2 Series
20" Desktop EcoSolvent Printer / Cutters
Roland BN2-20 (CMYK + White)
MSRP: $ 7,925.00
Roland BN2-20A (CMYK Only)
MSRP: $ 6,425.00
Professional Print & Cut Starts Here
With the next-generation BN2, Roland DGA has taken a great thing and made it even better. These compact powerhouses offer significantly faster print speeds, convenient new features, ease of use, and a space-saving design that allows for placement in a home, office, or shop. The BN2 is everything you need to get started in professional print and cut graphics production.
-
Professional quality printing and cutting functionality allows for a wide range of applications
-
Faster print speeds for optimum productivity
-
Affordably priced to suit the budgets of start-ups, & smaller businesses
-
Easy to use – even for those with no prior printing experience
-
Compact size is ideal for print environments with limited space
-
Feature-filled, intuitive design and output software included
Product Overview
Versatile and Easy To Use
-
Print and contour-cut graphics for a range of applications with one compact, affordable device.
-
Simple to operate, even for those with little or no printing experience.
-
Easy-to-use design and output software included, so anyone can design and print right out of the box.
​
High Quality Printing
-
Consistently produce stunning high-resolution prints with vibrant color and excellent detail.
-
Specially formulated Eco-Sol MAX2 and Eco-Sol MAX3 inks in 4-color (BN2-20A) or 5-color (BN2-20) configurations.
-
Prints deliver excellent outdoor durability for long-lasting graphics.
​
Productive and Efficient
-
Print speeds four times faster than the original BN-20 (in Standard mode) for increased productivity.
-
Front-loading ink and media, automatic sheet-cut and other features optimize convenience and efficiency.
-
Compact size fits easily on most desktops, making it ideal for home businesses and small work spaces.
​
Specifications
PRINTING METHOD
Printing Technology Piezo print heads
Ink Type Roland Eco-Sol MAX2 220ml ink cartridge
Ink Configurations
- BN2-20 - 5 Colors - CMYK + White
- BN2-20A - 4 Colors - CMYK
Maximum Resolution 1440 dpi
Print Speed (CMYK) 9.0 to 52.8ft² per hour
Print Speed (CMYK+W) 2.4 to 19.3ft² per hour
CUTTING METHOD
Cutting Technology Roland CAMM-1 series blade
Cutting Blade Force 30 to 500 gf
Offset 0.000 to 1.500mm (0.0 to 59mil)
Software Resolution (when cutting) 0.025mm/step (0.98 mil/step)
Cutting Speed 10 to 150 mm/s (0.39 to 5.9 in/s)
PRINTING CUTTING METRICS
Media Width 5.91 to 20.2 inches
Media Thickness
Maximum 1.0mm (39.3mil) with liner, for printing
Maximum 0.4mm (15.7mil) with liner and 0.22mm (8.6mil) without liner, for cutting
Roll Outside Diameter Maximum 150mm (5.9 inches)
Roll Weight Maximum 31.2lb
Core Diameter 2in or 3in
Printing Cutting Width Maximum 18.89 inches
GENERAL
Dimensions (W x D x H) 42.1" x 24.3" x 24.5" (1,069 mm x 617 mm x 622 mm)
Weight: 137 lbs (62 kg)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power Saving Function
Automatic sleep feature
Media Heating System
Print Heater Set Temp: 86 to 95°F, 30 to 35°C
Dryer Set Temp: 86 to 100.4°F, 30 to 38°C
Power Requirements
Voltage: AC 100 – 240 Va.c. 50 / 60 Hz 2.1A
Power Consumption
Operating: Approx. 185W
Sleep Mode: 27W
Acoustic Noise Level
Operating: 62 dB (A) or less
During Standby: 60 dB (A) or less
Environment
Operating: 68 to 89.6°F, 35 to 80% RH
Not Operating: 41 to 104°F, 20 to 80% RH
Included items Dedicated stands, power cord, media take-up unit, media holders, replacement sheet cutter blade, user's manual, software (VersaWorks, Roland DG Connect), etc.
Markets and Applications
Graphics and Decals
Apparel Graphics
Accessory Customization
Posters and General Signage
Window Decals and Static Cling
Bundled Software
Roland VersaWorks
Roland VersaWorks® has earned a reputation for being the world’s most user-friendly and feature-packed RIP software. Incorporating the HARLEQUIN RIP dual-core engine and other innovative features, VersaWorks 6 offers quick RIP speeds as well the ability to handle and correctly process complex PDF, EPS, and PS files with drop shadows and transparencies.
VersaWorks 6 includes a modern, intuitive interface. Simply drag and drop files from the desktop, or other folder locations, into the printer queue for processing. The icon-based RIP experience allows the user to quickly access powerful tools for layout, quality and color management settings, easy nesting operations, and advanced job management.
FlexiDESIGNER VersaSTUDIO Edition Software
Unleash your creative potential with the BN2 Series, which includes powerful FlexiDESIGNER VersaSTUDIO Edition design and output software. Capable of transforming even beginners into skilled designers, this bundled software ensures that everyone can start creating and printing attention-grabbing graphics right after their BN2 purchase. Efficiency is at the core of the FlexiDESIGNER VersaSTUDIO Edition software. This intuitive software simplifies the print-cut workflow, streamlining the process from design creation to final output. With every tool designed to enhance productivity, you can achieve remarkable results with ease.
Roland VersaSTUDIO Utility
Roland has created a user-friendly printing experience through the BN2 Series’ innovative utility interface. Say goodbye to complexity and embrace intuitive operation that enhances visibility and accessibility, with an advancement that puts all the essential tools at your fingertips. The BN2 Series displays important information, such as remaining ink levels, job names with thumbnails, and estimated print times during output. This real-time
insight ensures proactive management and helps you make informed decisions for optimized production.
