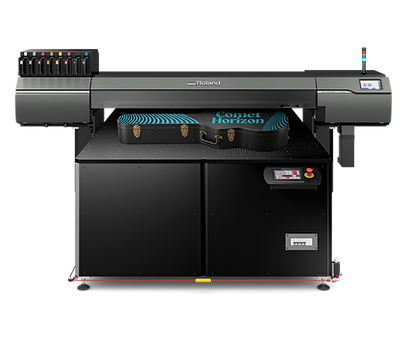

Roland VersaObject LO-640-F3
59" x 96" x 9.5" Direct-to-Object UV Printer
Roland VersaOBJECT LO-640-F3
MSRP: $ 89,995.00
Print Size: 59.8" x 93.4" x 9.5"
More Flexibility, More Opportunity
​
Take object customization to new heights with the VersaOBJECT LO-640, the newest UV flatbed printer from Roland. Digital UV printing has never been more versatile and the LO-640 is the perfect solution for customizing boards or objects up to 9.5 inches (242 mm) in height and even irregular 3D objects.
-
Lower ink price, larger ink capacity, and reduced running costs allow for optimum cost efficiency.
-
Precision laser guidance, integrated touch panel display, and “smart” features that simplify setup and reduce waste contribute to an exceptional user experience.
-
Gantry-mounted ionizer helps eliminate static and errors, while standard UV lamp tilt minimizes light reflection for improved print quality.
-
Included VersaWorks RIP software provides intuitive job management and automatic generation of White, Gloss, and Primer layers for faster setup and streamlined production.
Specifications
LO-640-F3
Width 64"
Print Size 59.8" x 96.4" x 9.5"
Weight 1,903lbs
Dims 115" x 136" x 62"
Technology Piezo-Electric print heads
Maximum Resolution Maximum 1,200 dpi
Head Carriage Movement High resolution stepping motor
Output Modes Continuous, Unload, Return to Origin, Layered
EQUIPMENT
Media Max Weight 220.4lbs
Vacuum System Single and Dual Fan
Media Height Setting Manual or auto-sensor
Surface Control Manual or auto-sensor
Control Interface 7" color LCD ​touchscreen
Interface Ethernet Base 10/100
INK TYPES
EUV5P 750ml pouches
- Cyan, Magenta, Yellow, Black, Red, Orange, Gloss, Primer
- 8-color, 7-color, 6-color and 4-color configurations available
ENVIRONMENT
Power Saving Function Automatic Sleep
Power Requirements 230V 16A 2P+E
Power Consumption With 100% vacuum, up to 2.9kw
Sleep Consumption 0.08kw
Temperature 68° - 90°F
Humidity 35-80% non condensing
Outstanding Print Quality
High-Definition Printing
Latest Print Head &
Powerful UV-LED Lamps
-
More precise ink delivery and control, even for the smallest droplets at 5 pL
-
Inks are cured onto the media in less time
-
Ability to produce detailed output, from small text to elaborate 3D / textured effects and gradients
High Density White
Opaque EUV5P White Ink
​
-
Suitable for printing on transparent films or dark materials
-
High Density White ink print mode increases the density of the White ink even further to meet your production requirements
Balance of Vivid, Natural Color
Features in Versaworks 7
​
-
True Rich Color produces vibrant colors, neutral grays, smooth gradients and natural skin tones
-
The Intelligent Color Matching system ensures consistent color output on every print between two or more of the same printers
Gloss Finish
Matte Finish
Multi-Layered Printing
Texture Printing
The VersaOBJECT LO-640 flatbed printer uses Roland EUV5P ink for exceptional, premium-value printing. Gloss ink can be used to add special effects like embossed, gloss and matte finishes, or for producing lifelike custom-textured effects by simply overprinting multiple layers. With 72 types of textured patterns included, it's easy to create gorgeous print without using time-consuming special printing methods.
Generic
Generic Distance
The Roland VersaOBJEC LO-640 printer features Distance Mode. This mode, which has been standard on all LEF devices, is enabled in the firmware of the LO Series flatbeds, greatly increasing the drop-on-demand capabilities when printing on curved surfaces (such as golf balls).
-
Larger ink droplets & reduced head speed for detailed prints on uneven materials
-
Significantly improved quality and greater drop-away potential with Distance Mode
Roland EUV5P True Rich Gamut UV Inks
Now With Orange and Red Ink
The new EUV5P inks can be set up in the following configurations for the LO-640 printer:
-
8-Colors - CMYK + Orange + Red + White + Gloss
-
7-Colors - CMYK + Orange + Red + White + White
-
7-Colors - CMYK + Red + White + Gloss + Primer
-
6-Colors - CMYK + White + White + Gloss + Primer
-
6-Colors - CMYK + White + White + Gloss + Gloss
-
4-Colors - CMYK + CMYK
​​
The addition of Orange and Red ink allows for a larger percentage of color coverage. In the chart below from the Pantone solid coated color book, the color gamut target increases by 7% with the new Orange and Red inks
With the optional additional Orange and Red inks, the LO-640 printer will have a much larger color gamut in the "warmer" hues. This will provide a larger target area and greater possibility to hit difficult colors such as Coca-Cola Red, Home Depot Orange and T-Mobile Pink.
CMYK = 81.54%
CMYK + Red = 86.30%
CMYK + Orange + Red = 88.85%
Why Choose a Roland LO-640 Flatbed?
-
The print quality of the LO-640 printer is better than any other printer in its class
-
New Orange and Red expanded gamut inks offer a higher complete color gamut than any other printers in their class
-
Roland VersaWorks 7 RIP Software is more intuitive and offers greater compatibility as far as specifications and tools are concerned
-
Print accuracy is superior on the LO-640 and calibrating the Roland UV machines is much easier compared to competitive devices
-
Vacuum table with integrated touch pad for printer controls at the platen
-
Advanced firmware with "White Space Skip" and "Distance Mode"
-
Vertical bed setup allows for print and loading options at both the front and the rear of the bed
-
Choice of 4-color, 6-color, 7-color and 8-color ink configurations
-
9.5" of print height expands printing opportunities
-
Two Year Trouble Free Warranty
