Epson SureColor P20570
64" Wide Format Production Photo
and Fine Art Bulk-Ink Printer
Epson SureColor P20570 Front Left

MSRP:  $ 12,295.00

Our Price: $ 12,295.00

Ships Summer 2024

Product Code  SCP20570SE
The Art of Permanance

The SureColor P20570 redefines large-format 64" production and fine art printing. From  professional photography to fine art reproductions to graphic design, this advanced printer  represents the pinnacle of professional printing technology for the demanding needs of  multiple markets. It combines a high-performance 12-channel PrecisionCore Micro TFP printhead with Nozzle Verification Technology and UltraChrome PRO12 Ink—including Orange, Green and Violet—in a high-capacity 1.6 L ink pack system, for the widest color gamut in its class1 and industry-leading print permanence.

With extensive media support, the SureColor P20570 produces exhibition-quality prints at exceptional speeds of 200 ft²/hr. In addition, powerful management tools to streamline production are standard in the SureColor P20570, including Epson Edge Print Pro RIP software—with an Adobe PostScript 3 based engine—Epson Media Installer and Epson Cloud Solution PORT.

Product Overview

Epson SureColor P20570 Overview
  • Advanced printhead design — 12-channel PrecisionCore Micro TFP printhead includes Nozzle Verification Technology for automated printhead maintenance

  • Widest color gamut in its class — UltraChrome PRO12 Ink with Orange, Green and Violet delivers an exceptionally wide range of colors, with up to 99% coverage of the PANTONE PLUS FORMULA GUIDE solid-coated standard

  • Improved workflow efficiency — high-capacity 1.6 L ink pack system eliminates the need for frequent cartridge changes and uses up to 90% less plastic vs. cartridges

  • Industry-leading print permanence — creates prints that last up to 200 years in color and 400 years in black-and-white

  • Remarkable productivity — photographic print-quality speeds of 200 ft²/hr

  • Intuitive operation — large 4.3" color LCD touchscreen allows for complete system control

  • Black Enhance Overcoat technology — improved Dmax on glossy media

  • Fast printer operation — high-speed system on a chip (SoC) helps enable fast printer operation and reduces spooling for a fast print start Extensive media handling — compatible with a wide variety of photographic and fine art roll media, sheet media and rigid boards up to 1.5 mm thick

  • Advanced software support — includes Epson Cloud Solution PORT for remote monitoring and fleet management, as well as Epson Media Installer and Epson Edge Print Pro software for workflow and media management

Specifications

PRINT

Printing Technology PrecisionCore Micro TFP printhead featuring Nozzle Verification Technology and variable-sized droplet control
Ink Type UltraChrome PRO12 aqueous pigment ink; 12-color ink set
Ink Colors PK, C, VM, Y, Lc, Lm, GY, MK, LG, Or, Gr, Vi
Nozzle Configuration 9,600 nozzles (800 nozzles x 12 colors)
Maximum Resolution 2400 X 1200 dpi
Minimum Ink Droplet Volume 3.5 picoliters
Print Speeds
Draft mode: 1,314 ft²/hr
Photo-quality: 200 ft²/hr
Printer Language/Drivers
Standard: Epson ESC/P raster photographic drivers
Optional Expansion Unit: Adobe PostScript 3, Adobe PDF
Memory 6GB

INK

Ink packs are not included with this printer

1.6 L per color x 12 colors total (ink sold separately)
Ink Pack Fill Volume
1.6 L per color available x 12 colors total

MEDIA HANDLING

Maximum Printable Width 64"

Maximum Printable Length 298'
Maximum Reel Diameter 7.48" with Auto Take-Up Reel

Maximum Reel Weight 52 lb with Auto Take-Up Reel
Maximum Roll Diameter 6.69"
Maximum Roll Weight 52 lb
Roll Paper Thickness 0.08 mm to 1.5 mm
Roll Paper Width 10" to 64"

BorderFree Print Widths 64", 60", 54", 44", 40.5", 36", 33.1", 28.7", 24", 23.4", 20", 17", 16", 13", 11.8", 10"

Optional Take-Up Reel Auto forward and backward

WHAT IS INCLUDED

SureColor P20750 Printer, Stand, Paper Basket, Roll Rests, AC Power Cable, Roll Adapter (x2), Epson Edge Print Pro, Setup Guide, Preinstalled Maintenance Boxes (x3), Additional Maintenance Boxes for Ink Initialization (x2), Dust Cover, Cleaning Supplies; Bulk Ink Delivery System (in a separate box)
Note: Ink and Media are not included with the printer.

GENERAL

Weight and Dimensions (W X D X H)
107.9" x 38.5" x 45.1" (Printing)
107.9" x 29.9" x 45.1" (Stowed)
Weight: 494 lb
Acoustic Noise Level
Sound Power Level: Not greater than 7 B(A)
Sound Pressure Level: Not greater than 55 dB(A)
Temperature
Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C)
Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)
Relative Humidity
Operating: 20% – 80% (no condensation)
Storage: 5% – 85% (no condensation)
Standards and Approvals
NRTL Certified CSA/UL 62368-1 (US and Canada)
Compliant with Class A requirements USA (FCC), Canada (ICES-003)
Electrical Requirements
Voltage: AC 100 V – 240 V
Frequency: 50 Hz – 60 Hz
Rated Current: AC 100 V – 240 V (3.4 A-1.6 A)
Power Consumption
Operating: Approx. 95 W
Standby: Approx. 0.3 W
Ready: Approx. 40 W
Sleep: Approx. 2.2 W
Country of Origin China

PRINTER INTERFACES

USB SuperSpeed USB

Ethernet 100Base-TX/1000Base-T

Optional 960GB SSD HD with encryption function

OPERATING SYSTEMS SUPPORTED

Mac® OS X® 10.9.5 or later, macOS® 10.12 - 10.15, 11 or later
Windows 11, Windows 10, Windows 8.1, Windows 8, Windows 7, Windows Server® 2022/2019/2016/2012 R2/2012/2008 R2/2008

LIMITED WARRANTY AND SERVICE

Warranty One-year limited in the U.S. and Canada
Service On-Site usually Next Business-Day13; toll-free telephone support, Monday through Friday

12-Channel PrecisionCore
MicroTFP Printhead

Simple | Smart | Clean

  • Industrial Quality Built for the life of the printer

  • Variable-Sized Droplets Ensures outstanding quality at high speeds

  • Nozzle Verification Technology Fewer nozzle clogs

  • Single PrecisionCore Print Chip has 800 Nozzles, 800 x 12 colors = 9600 total nozzles

Epson P20570 12 Channel PrecisionCore MicroTFP Printhead

UltraChrome PRO12 Ink Technology

Epson UltraChrome Ink

  • Widest color gamut in its class

  • 99% match of PANTONE Formula Guide solid coated colors

  • Industry leading permanence

1.6L Ink Pack System

  • Cost effective for production

  • Ink packs use90% less plastic than traditional cartridges

  • Larger bags means reduced ink changes during production

Epson UltraChrome Pro12 Bulk Ink

Black Enhance Overcoat Technology

Image Improvement targeted for photographic images on high gloss papers

  • Higher black density than SureColor P20000 on high gloss papers

  • Increases contrast with smoother tonal gradations on glossy papers

  • Mode built directly into the print driver

  • No special ink overcoat needed

Black Enhance Overcoat Technology

Versatile Media Handling

Epson SureColor P20570 Control Panel
  • Spindle-less Design – Offers support for 10”- 64” rolls

  • Auto Cut – New options for managing thick fine art media

  • Thick Sheet and Poster Board Support – print on media up to 1.5 mm thick

  • BorderFree® Printing – Four-sided borderless capability, reduces labor and finishing time

Intuitive Operation & Enhanced Connectivity

Large 4.3” LCD touch panel

  • Easy setup, printer control and maintenance

Enhanced speed and operation

  • High-speed system on a chip (SoC) enables fast printer operation and reduced spooling time

Enhanced connectivity includes

  • Gigabit Ethernet

  • SuperSpeed USB 3.0

Epson Surecolor P20570 LED Display

Advanced Software

Epson Print Layout

  • Streamlined and simplified photo printing application

  • OS X 10.10 or later, Windows 7 or later, iOS, iPadOS,

  • Photoshop® export plug-in

  • Integrated ICC support for Epson media

  • Live print preview of Advanced Black-and-White Mode

Epson Advanced Software

Epson Media Installer

  • Manages media and printer mechanical parameters

  • Imports non-Epson branded media

  • Synchronizes with Epson Print Layout, Epson Edge® Print Pro, printer driver and printer control panel

Epson Edge Print Pro

Software RIP Included

  • Simple tool for production printing

  • Fully developed by Epson

  • Uses Epson optimized color Look Up Tables

  • Works with Epson Media Installer

Key Features

  • Adobe® PostScript 3, Image Nesting, Step & Repeat, Hot Folder operation, Quick Sets,
    Drive 4 printers at once

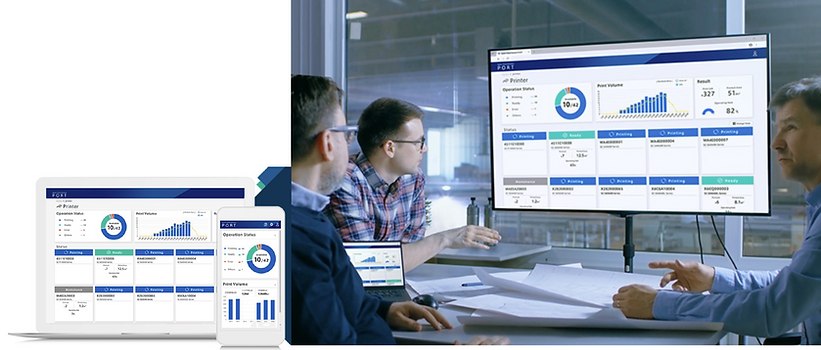

Epson Cloud Solution PORT

Cloud-based remote monitoring and reporting system

  • Provides almost real-time view of printer fleet regardless of where the printer is located

  • Web-based modules including usage and cost reporting features

  • Improved service and support

  • Simple and secure – enterprise level encryption

Epson Cloud Solution PORT
