Canon imagePROGRAF TX-3200 MFP Z36
36" Wide Format Technical Series
Multi-Function Printer / Copier / Scan-to-File

MSRP: $ 19,469.00

Our Price: $ 12,253.00

Savings: $ 7,216.00

Product Code 6854C022AB

Click Here for Product Specification Sheet

To play, press and hold the enter key. To stop, release the enter key.

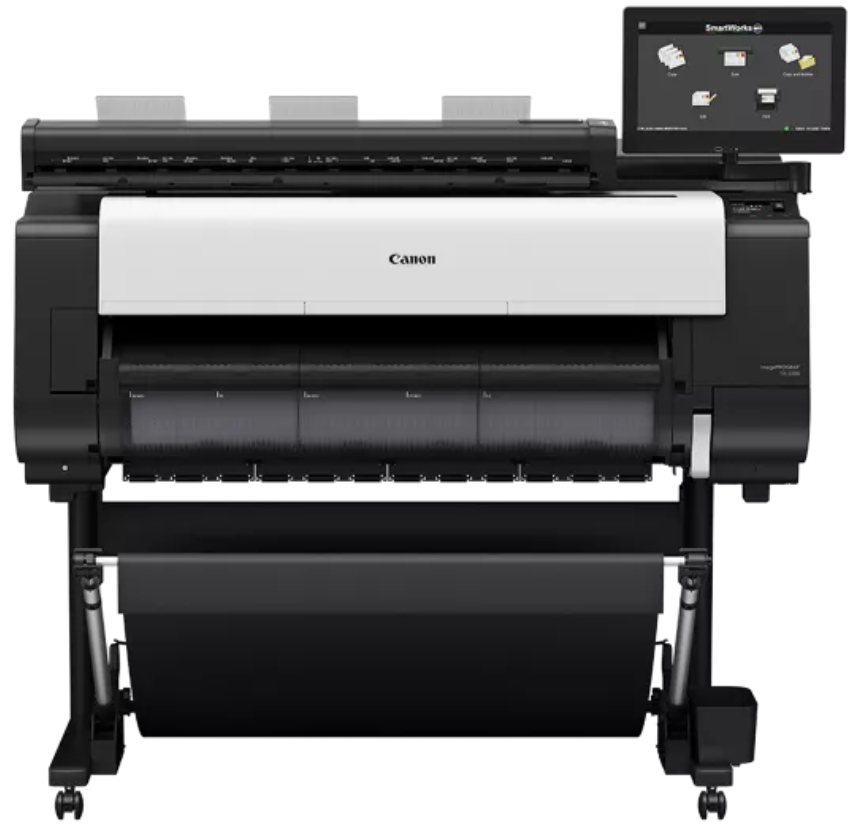

Canon imagePROGRAF TX-3200 MFP Z36 Front Left

Canon imagePROGRAF TX-3200 MFP Z36 Scanner

Where Precision Meets Productivity.

With the capability to print both monochrome line drawings and eye-catching full-color posters, the imagePROGRAF 36” TX-3200 MFP Z36 Large Format Printer is designed with production and versatility in mind within the aqueous inkjet market. Scan monochrome documents at up to 13” per second and color documents at up to 6” per second with the Z36 Scanner!

Product Overview

Size: 36" Printer with 36" Scanner
Print Speed: Up to 3.3 D-size pages per minute
- ANSI D prints/minute speed measured after first print in Fast Q5 mode, using plain paper. Print speed is based on internal testing. Print speed may vary depending on the number of copies selected, as well as on the settings for size, type, and orientation of paper.
Scan Speed: Up to 13" per second monochrome, Up to 6" per second color
Inks: LUCIA TD 5-Color Pigment Ink System
Usability: Optional Multifunction Roll Unit
Energy Savings: EPEAT Gold and Energy STAR registered

Printer Specifications

Printing Technology FINE (Photolithography Inkjet Nozzle Engineering)
Ink Type Canon Lucia TD inks
Printhead PF-06 Printhead

Nozzles 15,360 total. MBK: 5,120 CMYK: 2,560 each
Maximum Resolution 2400 x 1200 dpi

INK

Ink Pack Fill Volume 160 mL / 330 mL / 700 mL each color x 5 ink packs total
Included Ink in the Box 160 mL each color x 5 colors
Printer is designed for use with Canon ink packs only, not third-party ink systems

PRINTER INTERFACES

USB B Port: Hi-Speed USB (12 Mbit/sec, 480 Mbit/sec) USB A Port: USB thumb drive

Gigabit Ethernet: IEEE 802.3u/ab/x (100/1000Base-T, Full Duplex), SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP

Wi-Fi: IEEE 802.11n/g/b

GENERAL

Weight and Dimensions (W x D x H)
Dimensions: 55" x 39" x 46"
Weight: 227 lb
Acoustic Noise Level
Operation: 51 dB (A) or Less

Standby: 35 dB (A) or Less

Temperature
Operating: 59 ˚F to 86 ˚F (15 ˚C to 30 ˚C)
Relative Humidity
Operating: 10% – 80% (no condensation)
Electrical Requirements
Voltage: AC 100 - 240 V
Frequency: 50 Hz – 60 Hz
Power Consumption
Maximum: Approx. 115 W

Standby: Approx. 2.0 W

Power Off: Approx. 0.3 W
Certifications International ENERGY STAR® Program (WW), TUV, CB, EPEAT Gold®
Country of Origin Thailand

OPERATING SYSTEMS SUPPORTED

Windows 7x (32/64-bit) or later, macOS 10.15.7 or later

PRINTING SOFTWARE UTILITIES

Accounting Manager, Canon Print Service, Canon Production Printing (CPP) Driver Select, Canon Production Printing (CPP) PRISMA Tech Suite, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Optimized Driver for AutoCAD, Quick Utility Toolbox, Canon PRINT Inkjet/SELPHY

LIMITED WARRANTY AND SERVICE

Warranty One-year limited in the U.S. and Canada
Service
Toll-free telephone support, Monday through Friday

ECO FEATURES

RoHS compliant
End-of-life options available
Epson America, Inc. is a SmartWay® Transport Partner
UltraChrome DG2 Ink is certified by OEKO-TEX® ECO PASSPORT and is approved by ECOCERT according to the Global Organic Textile Standard (GOTS); safe for adults and children, including infants

WHAT IS INCLUDED

Includes Main Unit, TX Stacker or Multi-Positional Catch Basket, Stand, (1)Printhead, Starter Ink Tank Set, (1) Maintenance Cartridge (Installed), 2” Roll Holder with 3” Adapters, Installation Guide, User Registration Card, Printer Warranty Statement, Printhead Warranty Statement, Call Center Notice, Media Compatibility Flyer, PosterArtist Web Notice Flyer, iWR Service Terms Leaflet, Safety and Environmental Information, USB port (High Speed), Power Cable & Screw, Gigabit Ethernet (Built-In)

Z36 Scaner Specifications

SCAN FUNCTIONS

Scan Speed

24-bit Color @ 200dpi: 3" per sec

8-bit Greyscale / Monochrome @ 200dpi: 13" per sec

Copy Speed

24-bit Color @ 200dpi: 6" per sec

Color Space sRGB
Maximum Resolution 1200dpi (Optical)
Scan Accuracy +/- 0.1% : +/- 1 pixel

OPERATING SYSTEMS SUPPORTED

Windows 11 Enterprise LTSC (x64)

SCANNER INTERFACE KIT

3x USB 3.2 and 1x USB 2.0 rear and 1x USB 3.2 front,
all type A

INCLUDED SOFTWARE

SmartWorks MFP Scan-to-Copy/File/Email with
Real-time Image Viewer; supports TIFF, JPEG, and PDF

SCAN MECHANICS

Maximum Scan Width 36"

Maximum Media Width 38"
Maximum Scan Length 164' PDF, 315" JPEG, 598" TIFF
Maximum Media Thickness 0.003" to 0.04"

DIGITAL IMAGING TECHNOLOGY

Contact Image Sensor (CIS) Technology
(Single Sensor Assembly)
• 24-bit RGB
• 16-bit grayscale image capture
• Panchromatic monochrome and black and white
• Bi-directional extra long-life LED light system for
optimum object illumination and instant-on scanning capability

GENERAL

Operating Environment
10°C – 35°C, 10 - 90% RH, Non-condensing
External Power Supply

100 - 240 VAC Autosensing +/- 10%, 50 - 60 Hz
Scanner Power Consumption

Controller Power: 35 W
Sleep: 0.2 W
Idle: 12.4 W
Scanning Color/Grayscale at 200 dpi: 22.7 W/23.3 W

Dimensions
(With Stand, Pallet, and Scanner)
50” x 17” x 19.5”, 75 lb. (Approx.)

FINE Print Head Technology
(Photolithography Inkjet Nozzle Engineering)

Canon PF-06 Thermal Printhead
• The six-channel Canon PF-06 Print Head is engineered to work with the printer's high-speed carriage and high-frequency ink ejection to help facilitate fast printing
• End user replaceable
• Line accuracy +-0.1% or less

Product Features

Canon LUCIA TD Ink System

Quality At Speed

The magenta ink in the imagePROGRAF TX-3200 MFP Z36 is designed to deliver outstanding red color reproduction suitable for a wide range of markets and applications. The use of pigment ink for all colors helps to ensure prints are resistant to fading.

Improved Line Clarity

Dot Accuracy You Can Rely On for Output

Image processing improvements and LUCIA TD ink help to enhance CAD drawings, blueprints, AEC documentation, and poster reproductions with a large color gamut and improved text and line quality. This makes output more crisp, defined, and clear.

COLOR CALIBRATION

The Color Your Customers' Demand

Available in the imagePROGRAF TX-3200 MFP Z36, the ability to calibrate your printer helps ensure your output is color consistent over time and across multiple TX-3200/4200 devices

Z36 Scanner

Print / Copy / Scan (to file)

Workflow is effortless and consistent with Canon’s integration of the scanner with the imagePROGRAF TX Series. Like the previous model, the 36” lightweight Z36 scanner is positioned on top of the device, providing a compact, all-in-one solution for ease of use.

Canon Production Software

Canon PosterArtist
Making Posters Easy For Everyone
• Royalty Free Stock Images. Select from a wide variety of images from photo service providers with millions to choose from
• Intuitive Interface. Easy to use for all skill and experience levels
• Unleash Your Creativity. Make it yours by importing your own files such as JPEG, PNG and PDF for complete customization.
•Choose Your Creative Path. You have the option of starting a blank canvas to create your ideas or choose from a variety of pre-designed posters segmented into various themes, such as food and beverage, retail, sale and many more.
• Gold and Silver Textures. Add in the gold and silver texture look to graphics, backgrounds and text creating enhanced output.
